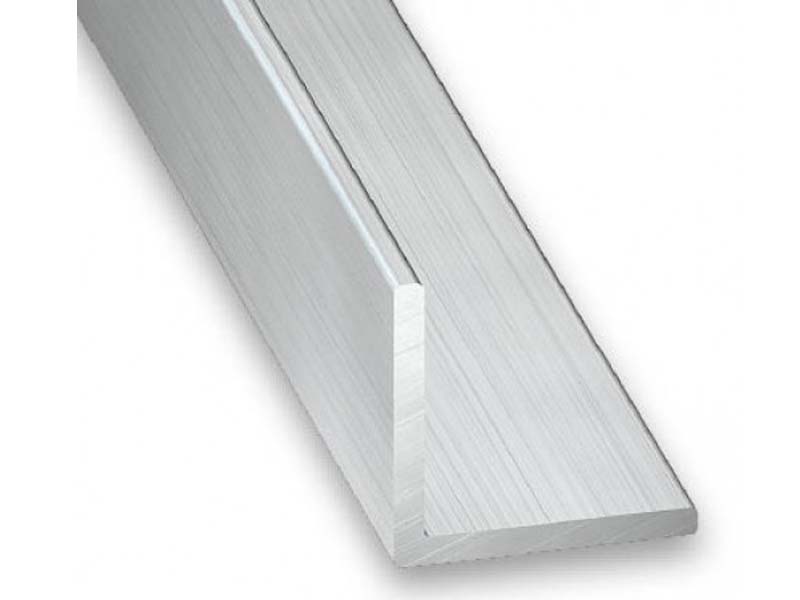

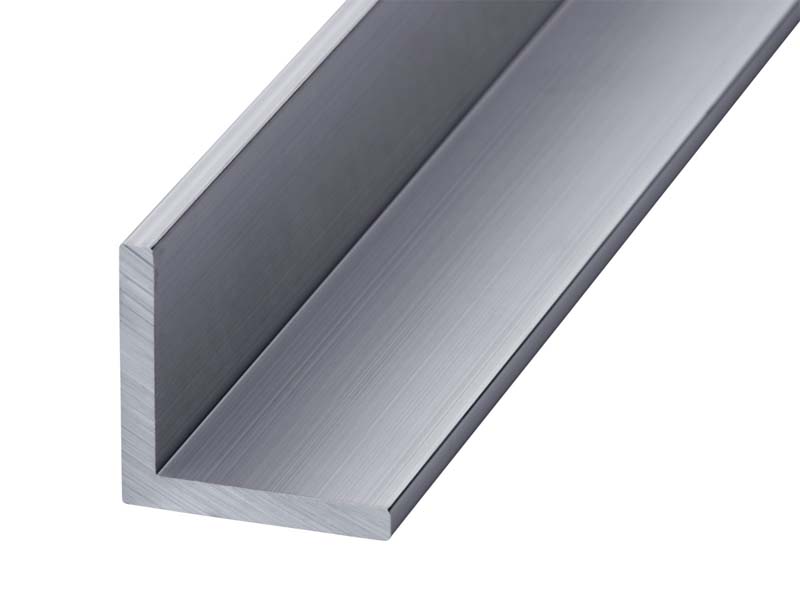

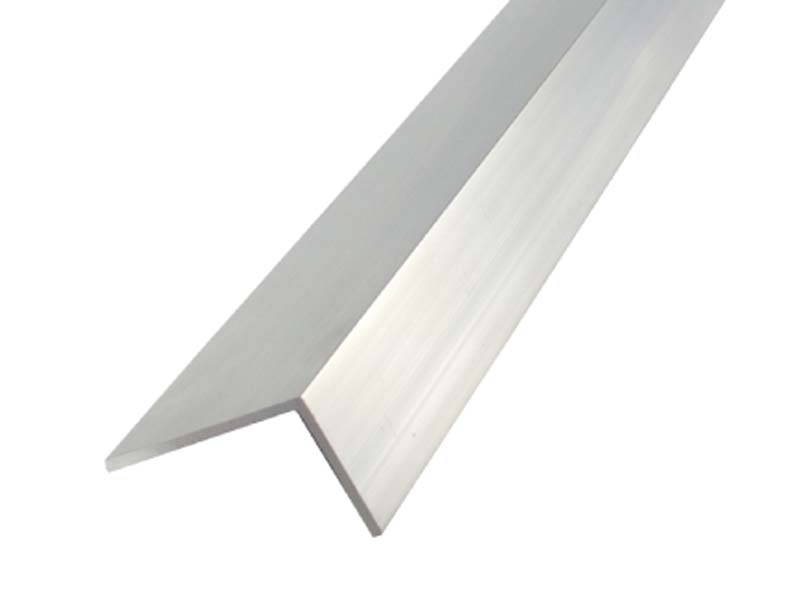

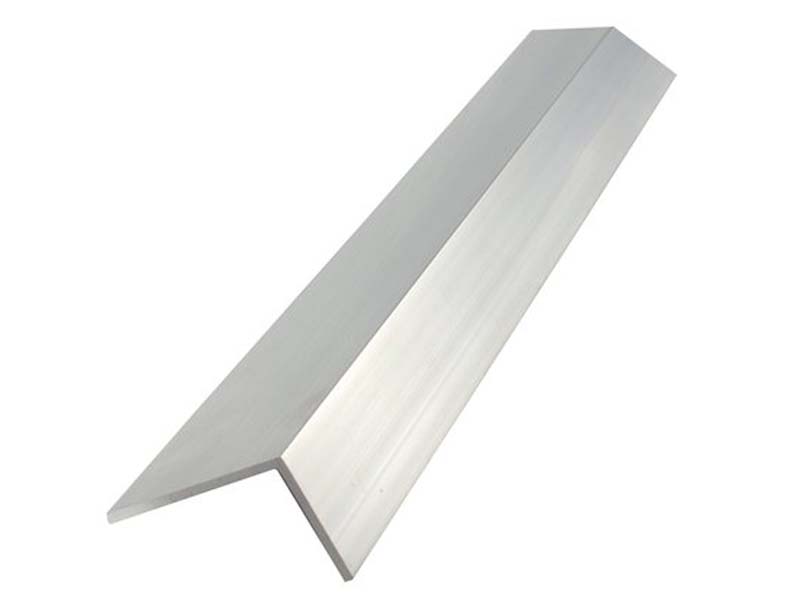

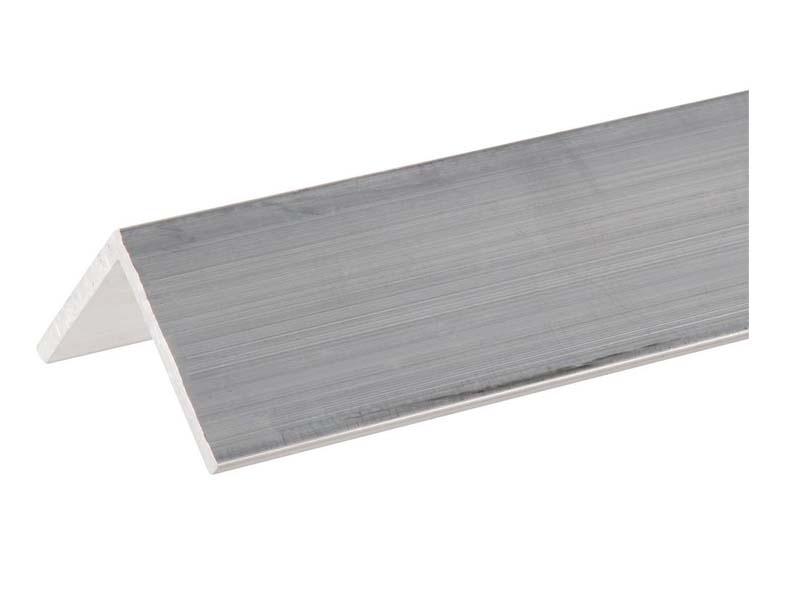

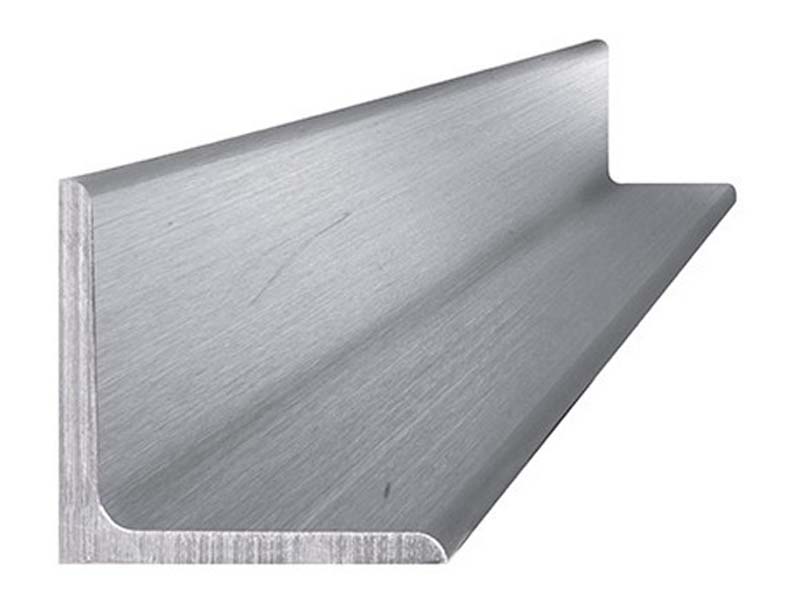

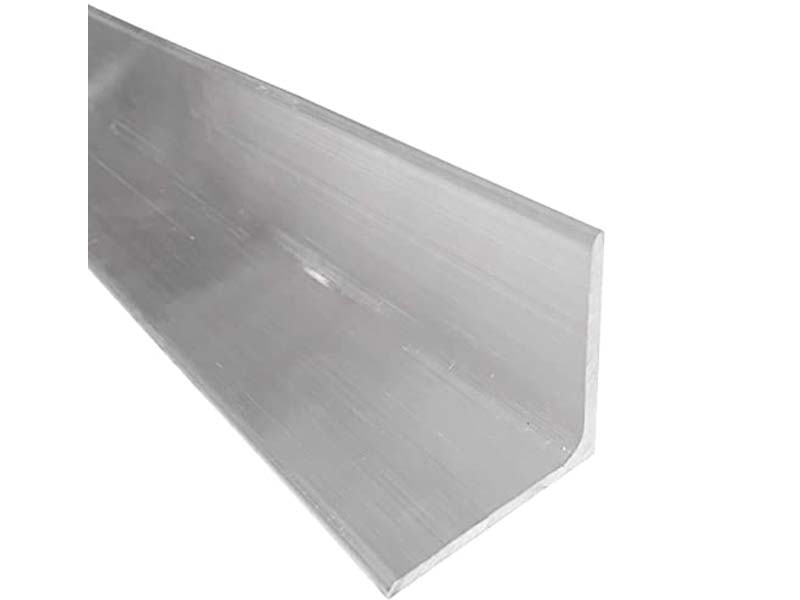

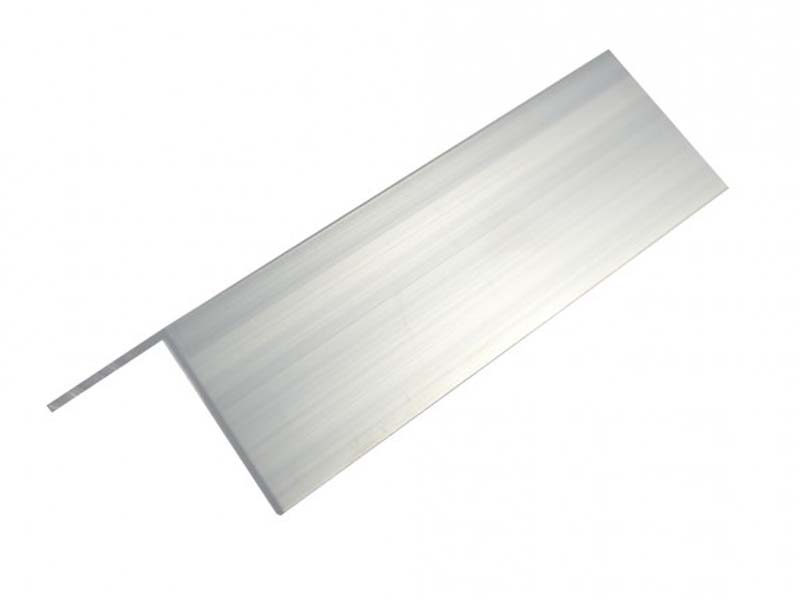

The aluminium equal angle is an important type of aluminium L angle with legs of equal lengths and equal thickness.
In Otalum, we offer a wide range of aluminium equal angles with a variety of alloys, sizes and finishes. It can be cut to size if the existing products cannot meet your requirement.
Precise cutting to length and processing services are available with the fastest lead time.
| Alloy | Standard | Surface Treatment | Further Process | Certificate |
| 6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc. | GB 5237-2008, JISH, AAMA, GB, BS, En | Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc. | Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. | CE, DNV, TUV, ISO9001 |
B=length, mm
T=thickness, mm
Weight(kg/m)
| Item | B | T | Weight(kg/m) |
| 3300A | 10 | 1 | 0.051 |
| ZY-236-001 | 10 | 1.25 | 0.062 |
| AN12X12X0.8 | 12 | 0.8 | 0.051 |
| AN12X12X0.9 | 12 | 0.9 | 0.057 |
| AN12X12X1.0 | 12 | 1 | 0.062 |
| AM1908 | 12 | 1.4 | 0.086 |
| AI-9322 | 12 | 1.5 | 0.092 |
| AN1212 | 12 | 1.6 | 0.097 |
| AN1212-2.0 | 12 | 2 | 0.119 |
| TC234 | 12.7 | 1.52 | 0.097 |
| AZ801 | 12.7 | 3.18 | 0.192 |
| ZY-236-002 | 13 | 1.25 | 0.084 |
| AN15X15X0.8 | 15 | 0.8 | 0.062 |
| AN15X15X0.9 | 15 | 0.9 | 0.07 |
| ARC041 | 15 | 1 | 0.078 |
| ZY-236-003 | 15 | 1.25 | 0.097 |
| ZY-480-547 | 15 | 1.5 | 0.117 |
| AN15X15X2 | 15 | 2 | 0.153 |
| AZ802 | 15.88 | 3.18 | 0.246 |
| ZY-S01-552 | 17 | 0.8 | 0.071 |
| TC125 | 19.05 | 1.5 | 0.149 |
| TC377 | 19.05 | 1.58 | 0.157 |
| TC136 | 19.05 | 3.18 | 0.3 |
| 3302-1.0 | 20 | 1 | 0.105 |
| ZY-236-004 | 20 | 1.25 | 0.13 |
| AIC-ANO202014 | 20 | 1.4 | 0.146 |
| AN20X20X1.5 | 20 | 1.5 | 0.158 |
| AN2020 | 20 | 1.6 | 0.165 |
| 3302-2.0 | 20 | 2 | 0.205 |
| ZY-S16-146 | 20 | 2.5 | 0.257 |
| HAN2020 | 20 | 3 | 0.3 |
| 3303-1.0 | 25 | 1 | 0.132 |
| ZY-236-005 | 25 | 1.35 | 0.178 |
| AN25X25X1.4 | 25 | 1.4 | 0.184 |
| AN25X25X1.5 | 25 | 1.5 | 0.197 |
| AN2525 | 25 | 1.6 | 0.208 |
| ZY-S16-147 | 25 | 2 | 0.262 |
| 3303-2.5 | 25 | 2.5 | 0.321 |
| HAN2525 | 25 | 3 | 0.381 |
| ZYW50110 | 25.2 | 1.6 | 0.208 |
| OS-AN013 | 25.4 | 1.57 | 0.208 |
| AN254X254X2.8 | 25.4 | 2.8 | 0.362 |
| TC107 | 25.4 | 3 | 0.386 |
| OS-AN005 | 25.4 | 3.18 | 0.408 |
| TC263 | 25.4 | 4.76 | 0.591 |
| OS-AN010 | 25.4 | 6.35 | 0.761 |
| 3304-1.0 | 30 | 1 | 0.159 |
| AN30X30X1.2 | 30 | 1.2 | 0.194 |
| ZY-236-009 | 30 | 2.15 | 0.335 |
| 3304-2.5 | 30 | 2.5 | 0.389 |
| 3304-3.0 | 30 | 3 | 0.462 |
| AN30X30X4.0 | 30 | 4 | 0.605 |
| ZYMQ155B21 | 30 | 5 | 0.742 |
| 70024KMB | 31.75 | 3.18 | 0.518 |
| AZ803 | 31.75 | 4.76 | 0.756 |
| AIC-ANO323214 | 32 | 1.4 | 0.238 |
| AN32X32X1.6 | 32 | 1.6 | 0.27 |
| ZY-236-006 | 32 | 1.95 | 0.327 |
| HAN3232 | 32 | 3 | 0.494 |
| AN3535 | 35 | 1.5 | 0.278 |
| AN35X35X4 | 35 | 4 | 0.713 |
| AN38X38X1.4 | 38 | 1.4 | 0.284 |
| 3308 | 38 | 3 | 0.591 |
| TC264 | 38.1 | 1.59 | 0.321 |
| AN381X381X2.8 | 38.1 | 2.8 | 0.556 |
| TC210 | 38.1 | 3 | 0.594 |
| AABE-018 | 38.1 | 3.18 | 0.626 |
| TC121 | 38.1 | 4.57 | 0.883 |
| AABE-001 | 38.1 | 6.35 | 1.199 |
| CRL160 | 38.25 | 3.25 | 0.643 |
| ZY-EIE04 | 39.5 | 2.5 | 0.516 |
| AN40X40X1.4 | 40 | 1.4 | 0.297 |
| AN4040 | 40 | 1.6 | 0.338 |
| ZY-236-007 | 40 | 1.75 | 0.37 |
| ZY-451-058 | 40 | 2 | 0.426 |
| HAN4040 | 40 | 3 | 0.624 |
| ZYRMQ20015 | 40 | 4 | 0.83 |
| ZYMQ22709 | 40 | 5 | 1.024 |
| AM9126 | 40 | 6 | 1.212 |
| AZ804 | 44.45 | 3.18 | 0.737 |
| AIC-ANO505014 | 50 | 1.4 | 0.373 |
| ZY-236-008 | 50 | 1.45 | 0.386 |
| AM9417 | 50 | 1.5 | 0.4 |
| AN5050 | 50 | 1.6 | 0.424 |
| AN50X50X2.85 | 50 | 2.85 | 0.748 |
| HAN5050 | 50 | 3 | 0.786 |
| AN5004 | 50 | 4 | 1.048 |
| ZYMQ22719 | 50 | 5 | 1.297 |
| AN5006 | 50 | 6 | 1.523 |
| TC190 | 50.8 | 1.52 | 0.405 |
| AF1278 | 50.8 | 1.57 | 0.424 |
| TC043 | 50.8 | 2.34 | 0.626 |
| AN508X508X2.8 | 50.8 | 2.8 | 0.748 |
| OS-AN006 | 50.8 | 3.18 | 0.845 |
| ZY-349-003 | 50.8 | 3.25 | 0.857 |
| OS-AN004 | 50.8 | 4.76 | 1.245 |
| OS-AN002 | 50.8 | 6.35 | 1.634 |
| AZ805 | 50.8 | 9.53 | 2.368 |
| AN60X60X6 | 60 | 6 | 1.847 |
| AZ806 | 63.5 | 3.18 | 1.064 |
| AN70X70X4 | 70 | 4 | 1.485 |
| ZY67463 | 75 | 4 | 1.577 |
| CF-PP-7 | 76 | 6 | 2.392 |
| TC475 | 76.2 | 3 | 1.21 |
| AABE-003 | 76.2 | 3.18 | 1.283 |
| OS-AN012 | 76.2 | 4.76 | 1.898 |
| OS-AN001 | 76.2 | 6.35 | 2.503 |
| AABE-004 | 76.2 | 9.53 | 3.677 |
| AN80X80X6 | 80 | 6 | 2.495 |
| AZ808 | 88.9 | 3.18 | 1.499 |
| OS-AN007 | 101.6 | 3.18 | 1.717 |
| HA125 | 101.6 | 4.76 | 2.552 |
| AABE-006 | 101.6 | 6.35 | 3.375 |
| AABE-007 | 101.6 | 9.53 | 4.984 |
| ZY66135 | 109.5 | 2.5 | 1.461 |
