Aluminium Equal Channel

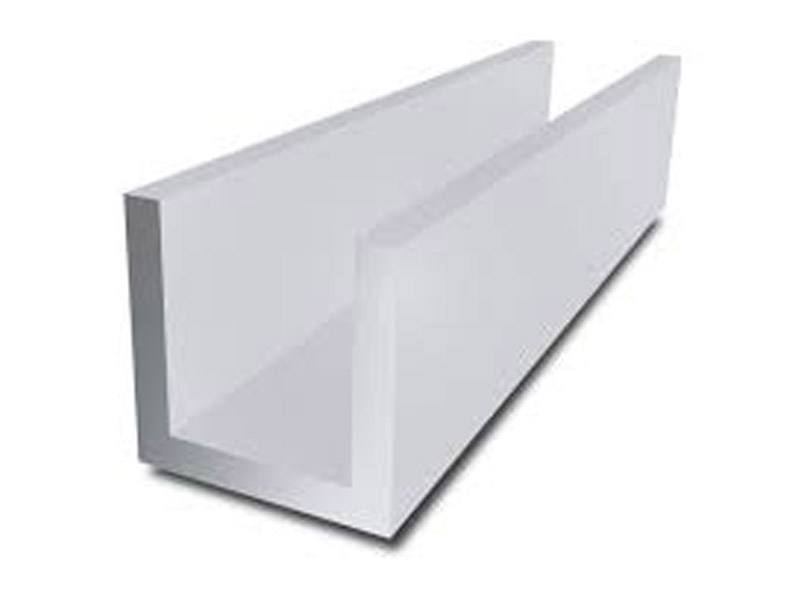

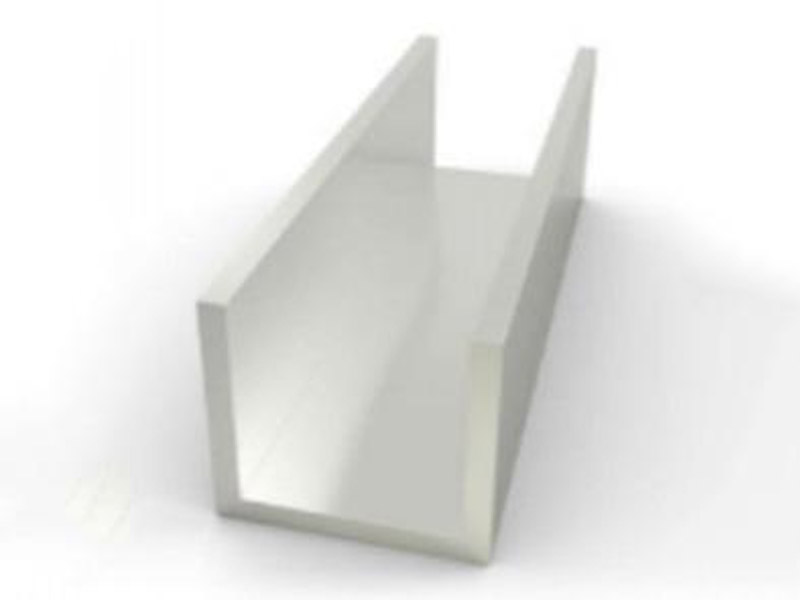

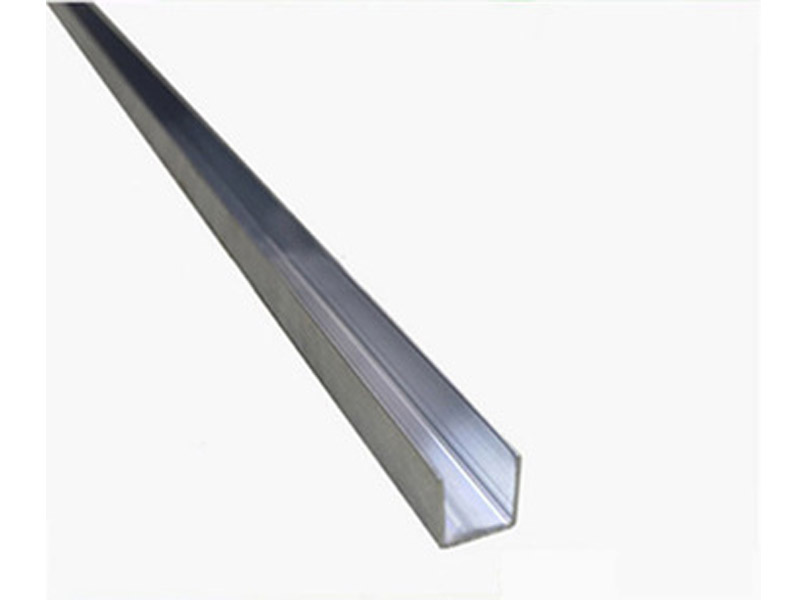

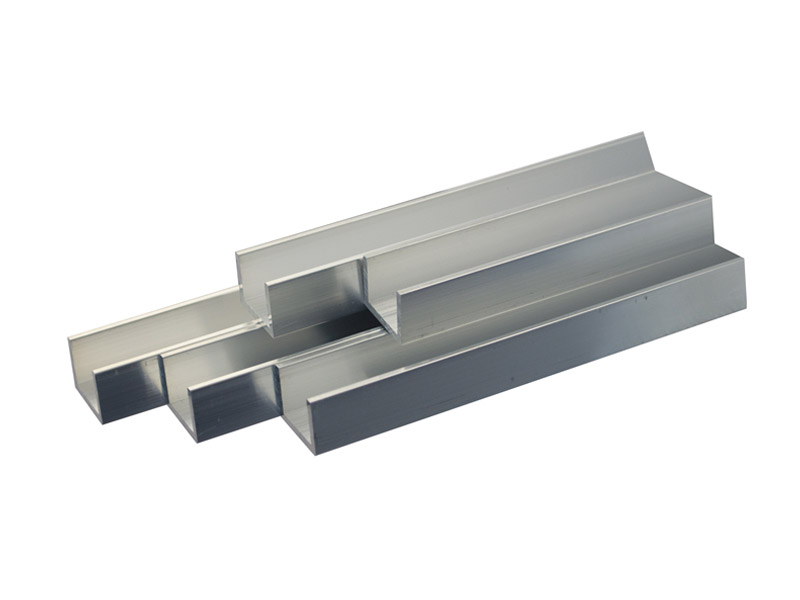

Aluminium equal channels are "U-shape" extruded profiles with equal lengths of legs and bottom.


Specializing in producing various types of aluminum extrusions profiles, Otalum offers a wide range of aluminium equal channels with a variety of alloys, sizes and finishes. All of our aluminium equal channels can be cut to different sizes if the existing products cannot meet your requirements.


Precise cutting to length and processing services are also available with the fastest lead time.

Features of Aluminium Equal Channel

AlloyStandardSurface TreatmentFurther ProcessCertificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc.GB 5237-2008, JISH, AAMA, GB, BS, EnMill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc.Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. CE, DNV, TUV, ISO9001


Specifications of Aluminium Equal Channel

Aluminium Equal Channel


B=length, mm

T=thickness, mm

Weight(kg/m)



Item

B

T

Weight(kg/m)

ARC080

6

1

0.043

CH8X8X0.8

8

0.8

0.049

ARC082

8

1

0.06

CH10X10X0.8

10

0.8

0.062

CH10X10X1

10

1

0.076

CH12X12X0.8

12

0.8

0.076

CH12X12X0.9

12

0.9

0.084

CH12X12X1.0

12

1

0.092

CH1212

12

1.6

0.140

ZY-236-G1003

12.7

1.05

0.102

TC230

12.7

1.52

0.143

AZ820

12.7

1.59

0.151

OS-CH005

12.7

3.18

0.273

ZY66293

15

0.8

0.095

ZY66717

15

0.9

0.106

CH1515T15

15

1.5

0.171

AZ822

15.88

3.18

0.354

CH161616

16

1.6

0.195

DT3355

16.3

1.5

0.186

CH19X19X1

19

1

0.143

CH2020T30

20

3

0.437

CH25X25X1.6

25

1.6

0.314

CH25253

25

3

0.559

CH254X254X2.5

25.4

2.5

0.481

TC082

25.4

3.18

0.599

U30X30-2.8

30

2.8

0.637

AZ825

31.75

3.18

0.764

CH32X32X3

32

3

0.729

CH3232

32

3.2

0.802

CRL112

36.93

2.39

0.683

AZ890

44.5

3.18

1.091

ZY66797

50

3

1.179

TC087

50.8

3.18

1.253

AZ828

50.8

6.35

2.395


START NOW
When ordering, pls specify alloy, temper, length, quantity, surface finish, end-use and any special instructions regarding tolerance, delivery, packing and certification. It couldn’t be better if you can share with us your designed drawings. If you have any questions, pls contact us without hesitation. Thanks.
