Aluminium Unequal Angles

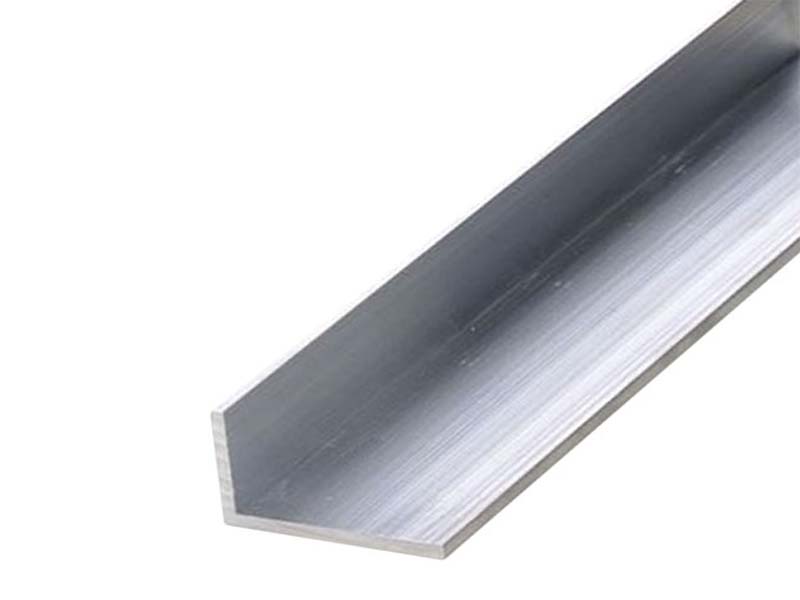

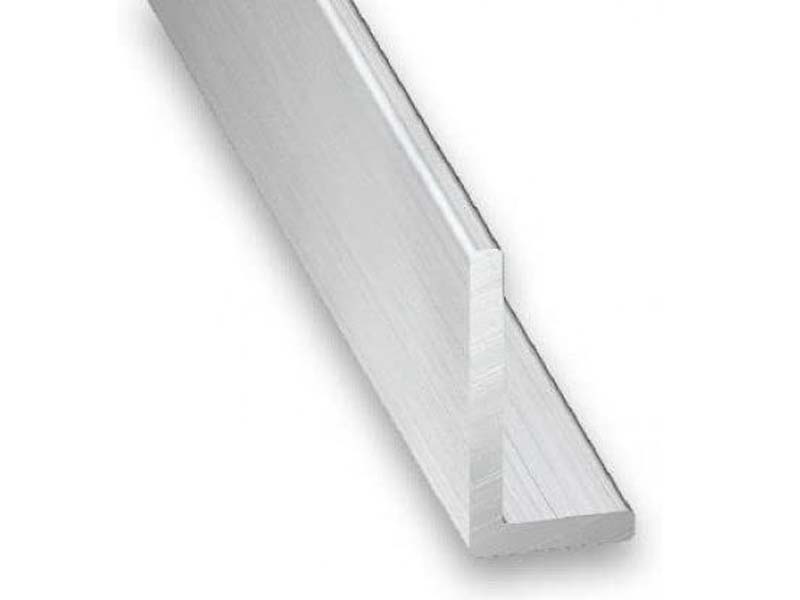

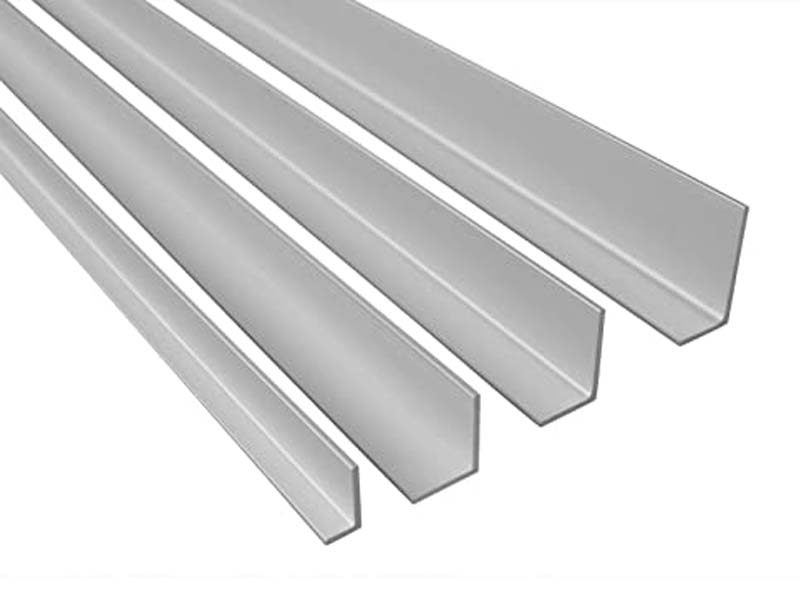

Aluminium unequal angles are "L-shape" extruded profiles with legs of unequal lengths and equal thickness.

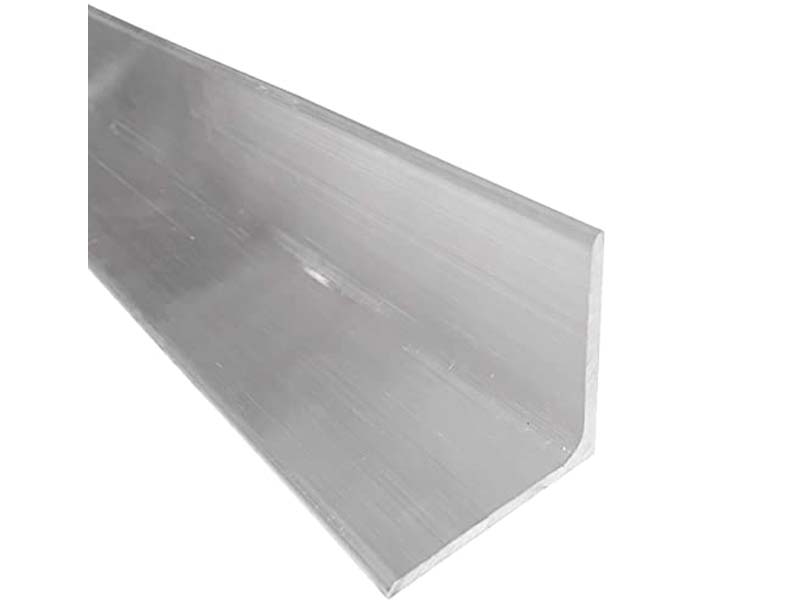

In Otalum, we offer a wide range of aluminium unequal angles, as well as the aluminium equal angle, with a variety of alloys, sizes, metics and finishes. All of our aluminium unequal angles can be cut to a specific size if these existing products cannot meet your requirement.


Precise cutting to length and processing services are available with the fastest lead time.

Features of Aluminium Unequal Angles

AlloyStandardSurface TreatmentFurther ProcessCertificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc.GB 5237-2008, JISH, AAMA, GB, BS, EnMill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc.Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. CE, DNV, TUV, ISO9001


Specifications of Aluminium Unequal Angles


Aluminium Unequal Angles

B=length, mm
T=thickness, mm

H=height, mm

Weight(kg/m)


Item

B

H

T

Weight(kg/m)

ZY-236-G1004

9.53

12.7

1.45

0.081

BK31

12

10

1.6

0.089

ARC011

15

10

1

0.065

3305-1.0

18

12

1

0.078

CF5055

18

13

1.5

0.119

AN19X10X2.0

19

10

2

0.146

AZ809

19.05

12.7

1.59

0.13

AN20X9.2X2.0

20

9.2

2

0.147

ARC012

20

10

1

0.078

ZY-236-010

20

10

1.25

0.097

AIC-ANO201214

20

12

1.4

0.116

AI-9323

20

12

1.5

0.126

AN2012

20

12

1.6

0.132

ZY-480-845

20

15

1.5

0.137

AN20X15X2.0

20

15

2

0.18

AN2016-2.0

20

16

2

0.184

ZY-480-753

20

19

1.5

0.153

CF-A039

25

6

3

0.227

AIC-ANO251214

25

12

1.4

0.135

AI-9325

25

12

1.5

0.143

AN1225

25

12

1.6

0.154

AN25X12X2

25

12

2

0.189

AN25X12X2.5

25

12

2.5

0.232

HAN12253

25

12

3

0.275

AN25X15X1.0

25

15

1

0.105

ARC014

25

15

1.5

0.157

AN25X152.0

25

15

2

0.207

AN25X20X1.0

25

20

1

0.12

AIC-ANO252014

25

20

1.4

0.165

AI-9326

25

20

1.5

0.176

AN2025

25

20

1.6

0.186

HAN2025

25

20

3

0.34

AZ810

25.4

12.7

3.18

0.3

AN27X20X2.0

27

20

2

0.246

H107

30

12

3

0.316

ARC045

30

15

1

0.119

ZY-GY07

30

15

1.5

0.176

6121

30

15

2.5

0.286

ZY-001-130

30

16

2

0.24

ZYW0632

30

20

1

0.132

ARC015

30

20

1.5

0.197

3306-2.0

30

20

2

0.259

AN30X20X2.5

30

20

2.5

0.321

3306-3.0

30

20

3

0.381

AN30X24X4

30

24

4

0.548

AN30X25X4.0

30

25

4

0.551

CF-LCD2A

32

12

1.6

0.184

AI-9328

32

20

1.5

0.205

AN2032

32

20

1.6

0.219

AM9116

32

20

3

0.397

ZYRMQ20016

32

22

2

0.284

AN2532

32

25

1.6

0.24

AN2035

35

20

1.6

0.232

AN35X25X1.6

35

25

1.6

0.256

ZYMQ195AE30

35

28

4

0.64

ZY-205-029

37

12.7

1.6

0.208

ZY-XF01

37.21

30.86

2.29

0.408

AZ811

38.1

12.7

3.18

0.408

ZY-508-074

38

16.5

2.8

0.396

AN38X19X3

38

19

3

0.442

AZ812

38.1

19.05

3.18

0.464

AN38.2X19.2X41

38.2

19.2

4.1

0.603

AN4006

40

6

1.6

0.192

AIC-ANO401214

40

12

1.4

0.192

AN1240

40

12

1.6

0.219

AN9120

40

12

3

0.397

ARC016

40

15

1.5

0.216

ZYW0633

40

20

1

0.159

AIC-ANO402014

40

20

1.4

0.221

AI-9329

40

20

1.5

0.24

AN2040

40

20

1.6

0.251

AN40X20X2.5

40

20

2.5

0.389

AN9121

40

20

3

0.462

AN40X20X4.0

40

20

4

0.612

AIC-ANO402514

40

25

1.4

0.24

AN2540

40

25

1.6

0.273

AN40X25X3

40

25

3

0.502

AN40X25X4

40

25

4

0.659

AN40X30X1.4

40

30

1.4

0.262

ZY-S06-060

40

30

2

0.371

ZYW15045

40

35

4

0.764

ZY-162-238

42

13

2

0.289

ZYMQ195AE31

43

17

3

0.463

TC471

44.45

15.88

2.24

0.351

AZ814

44.45

25.4

3.18

0.572

AN45X34X3

45

34

3

0.622

ZYMQZCMTB175

45

40

3

0.667

ZY-001-078

46

20

4

0.67

AN501203

50

12

3

0.478

ZYW0634

50

20

1

0.186

AN50X20X1.6

50

20

1.6

0.294

AIC-ANO502514

50

25

1.4

0.278

AI-9332

50

25

1.5

0.3

AN2550

50

25

1.6

0.316

AN50X25X3

50

25

3

0.583

ZYH2115

50

30

4

0.821

ZYPM11515

50

34

4

0.874

ZY-S04-154

50

40

4

0.939

AZ813

50.8

19.05

3.18

0.572

TC042

50.8

25.4

1.57

0.316

TC415

50.8

25.4

2.24

0.448

OS-AN014

50.8

25.4

3.18

0.626

TC303

50.8

38.1

3.18

0.737

ZYGD15018

52.5

27

1.7

0.36

ZY-150-101

54

10

5

0.805

AN55X27X2.5

55

27

2.5

0.543

WNW001

57.15

25.4

3.18

0.68

AN1260

60

12

1.6

0.305

GP-176

60

12

3

0.559

AN2560

60

25

1.6

0.359

ZY-S04-155

60

40

5

1.297

AZ897

63.5

50.8

1.59

0.483

AZ896

63.5

50.8

3.18

0.953

AIC-ANO702514

70

25

1.4

0.354

AN2570

70

25

1.6

0.402

HAN2570

70

25

3

0.745

AIC-ANO704014

70

40

1.4

0.41

AM7492

70

40

1.5

0.44

ZYW0080

72.7

39.7

5.7

1.639

ZY-S11-068

75

35

1.5

0.445

AABE-065

76

38.1

3.17

0.95

TC127

76.2

25.4

1.5

0.405

70014KMB

76.2

25.4

1.59

0.429

TC522

76.2

25.4

3

0.799

OS-AN003

76.2

25.4

3.18

0.845

TC128

76.2

38.1

2.24

0.678

TC108

76.2

50.8

3

1.004

70022KMB

76.2

50.8

3.18

1.076

AABE-002

76.2

50.8

6.35

2.068

AN76.3X25.5X3

76.3

25.5

3

0.808

ZY-061-045

78

60

2.5

0.915

AM9137

80

20

3

0.786

AN80X35X4

80

35

4

1.199

AN85X30X2.5

85

30

2.5

0.767

ZY67299

85

30

10

2.835

ZY-319-001

85

37

3

0.964

ZY-S11-069

90

75

1.8

0.803

ZY67550

95.25

38.1

9.53

3.183

ZY66108

99

66.5

12.5

5.165

TC163

101.6

50.8

3

1.21

70036KMB

101.6

50.8

3.18

1.296

AABE-005

101.6

50.8

6.35

2.503

AABE-094

101.6

76.2

6.35

2.94

AN102X30X3

102

30

3

1.057

ZY-158-006

102

51

6

2.371

AN115X40X11

115

40

11

4.277

JED029

117.48

25.4

3.18

1.199

AN125X50X3

125

50

3

1.409

AN125X50X3

127

25.4

3

1.21

70034KMB

127

25.4

3.18

1.3

TC211

127

50.8

3

1.415

70037KMB

127

50.8

3.18

1.515

AN130X100X10

130

100

10

5.94

ZY-246-034

150

75

3

1.818

ZY-158-001

150

90

10

6.18

HA129

152.4

101.6

9.53

6.291

JED030

168.28

25.4

3.18

1.636


START NOW
When ordering, pls specify alloy, temper, length, quantity, surface finish, end-use and any special instructions regarding tolerance, delivery, packing and certification. It couldn’t be better if you can share with us your designed drawings. If you have any questions, pls contact us without hesitation. Thanks.
