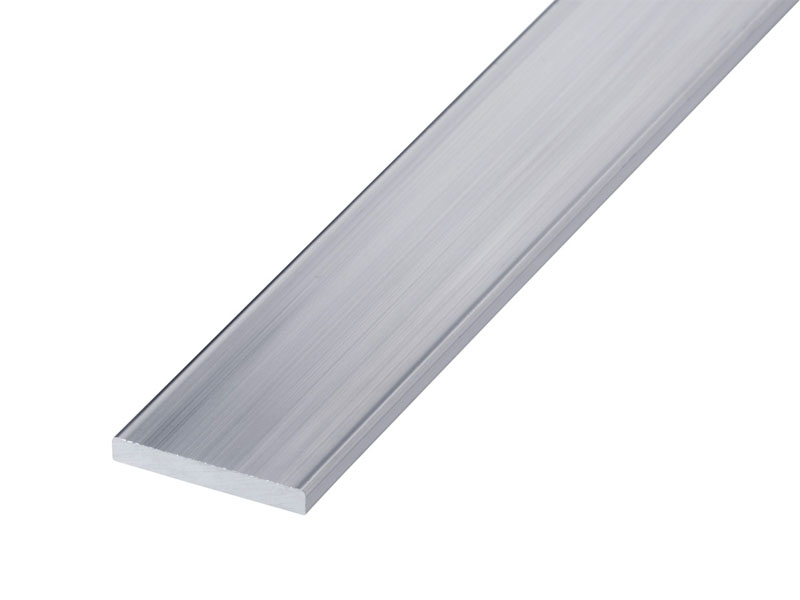

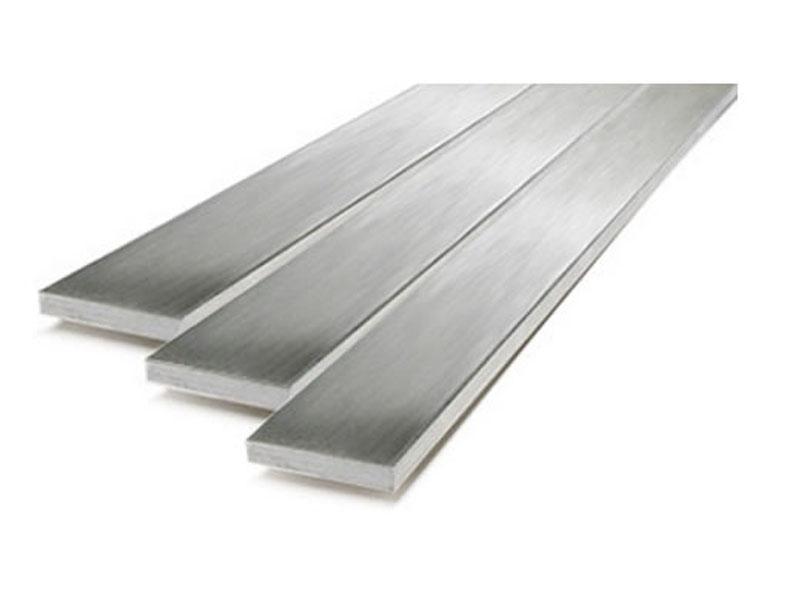

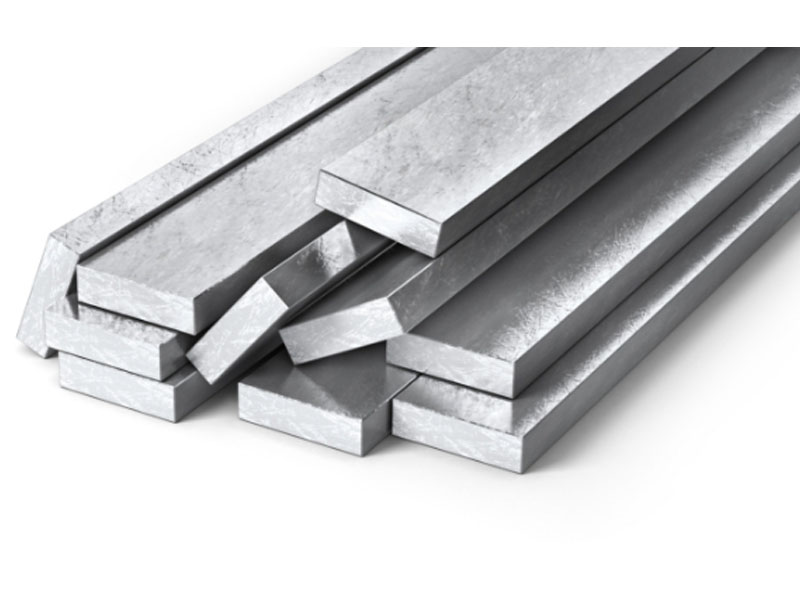

Aluminium Flat Bars

Name: Aluminium Flat Bars
Brand: Shenzhen Oriental Turdo Ironwares Co., Ltd.

Aluminium flat bar can be widely applied in construction, machinery, electronics, sports equipment, advertising, transportation, consumer goods, furniture, aviation, military, and other applications.

In Otalum, we offer a wide range of anodized aluminium flat bars with a variety of alloys, sizes and finishes. These polished aluminum flat bars can also be cut to a specific size if the existing products cannot meet your requirement.

Precise cutting to length and processing services are available with the fastest lead time.

Get a Quote

Features of Aluminum Flat Bars

Alloy	Standard	Surface Treatment	Further Process	Certificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc.	GB 5237-2008, JISH, AAMA, GB, BS, En	Mill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc.	Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc.	CE, DNV, TUV, ISO9001

Specifications of Aluminum Flat Bars

Aluminum Flat Bars

B=length, mm
T=thickness, mm

Weight(kg/m)

Item	B	T	Weight(kg/m)
ZY-050-365	8	4	0.086
FB9227	9.2	2.7	0.068
ZY-S01-684	10	2	0.055
FB10X2.5	10	2.5	0.068
FB10X3	10	3	0.081
FB11.8X1.35	11.8	1.35	0.043
FB12X2.5	12	2.5	0.081
FB12X3	12	3	0.097
FB10X12	12	10	0.324
FB15X3	15	3	0.122
FB16X2.5	16	2.5	0.108
FB16X3	16	3	0.13
AI-FB1753	17.5	3	0.143
FB19X4	19	4	0.207
AF1432	19.05	12.7	0.653
FB2030	20	3	0.162
FB2040	20	4	0.217
ZY-050-418	20	8.2	0.448
FB25X1.6	25	1.6	0.108
FB25X2	25	2	0.137
ZY-438-433	25	2.5	0.169
FB2530	25	3	0.203
FB2560	25	6	0.405
AZ-9009	25.4	15.88	1.088
AZ-9016	25.4	19.05	1.307
FB30X1.6	30	1.6	0.13
FB3030	30	3	0.244
AZ-9017	31.75	19.05	1.634
AZ-9024	31.75	25.4	2.176
FB32X3	32	3	0.259
FB3260	32	6	0.518
AI-FB353	35	3	0.284
AI-FB3830	38	3	0.309
AZ-9010	38.1	15.88	1.634
AZ-9018	38.1	19.05	1.96
AZ-9025	38.1	25.4	2.614
FB4016	40	1.6	0.173
FB40X2.5	40	2.5	0.273
FB4030	40	3	0.324
FB40X4	40	4	0.432
FB4050	40	5	0.542
FB4060	40	6	0.648
FB4010	40	10	1.08
AZ859	44.45	6.35	0.761
AZ886	44.45	12.7	1.526
AZ-9019	44.45	19.05	2.287
AQ1580	47	1.35	0.17
FB5012	50	1.2	0.162
FB5016	50	1.6	0.216
FB5030	50	3	0.405
FB5050	50	5	0.678
FB5060	50	6	0.81
FB5010	50	10	1.35
AF1723A	50.8	4.77	0.661
AF10691	50.8	12.7	1.742
AZ-9011	50.8	15.88	2.179
AZ-9020	50.8	19.05	2.614
AF6817	50.8	25.4	3.52
AZ-9029	50.8	31.75	4.355
ZY-S01-300	58	8	1.267
FB60X3	60	3	0.491
FB60X4.0	60	4	0.655
ZY-S04-152	60	5	0.819
FB6060	60	6	0.972
FB60X12	60	12	1.944
AF71187	63.5	6.35	1.088
AZ884	63.5	9.53	1.634
AZ885	63.5	12.7	2.176
AZ-9021	63.5	19.05	3.267
AZ891	63.5	25.4	4.355
AZ-9030	63.5	31.75	5.443
AZ-9033	63.5	38.1	6.531
AZ-9012	76.2	15.88	3.267
AZ856	76.2	19.05	3.92
AZ-9026	76.2	25.4	5.225
AZ-9031	76.2	31.75	6.531
AZ-9034	76.2	38.1	7.838
FB80X1.6	80	1.6	0.346
FB80X3	80	3	0.648
FB8060	80	6	1.296
FB8080	80	8	1.728
FB80X10	80	10	2.16
FB80X12	80	12	2.592
AI-FB8016	80	16	3.456
FB83X2.5	83	2.5	0.562
ZY-232-196	83	6	1.36
AZ883	88.9	6.35	1.526
ZY-S04-158	90	5	1.229
ZY-150-142	90	5.2	1.278
FB100X1.5	100	1.5	0.405
FB10016	100	1.6	0.432
FB10018	100	1.8	0.729
FB100X3	100	3	0.81
FB100X6	100	6	1.62
ZY-001-143	100	8	2.184
FB100X10	100	10	2.7
FB10020	100	20	5.4
FB10025	100	25	6.75
TC398	101.6	1.58	0.437
AF548	101.6	3.18	0.872
AZ-9013	101.6	15.88	4.355
AZ-9022	101.6	19.05	5.225
AABE-066	101.6	25.4	6.969
AZ-9032	101.6	31.75	8.71
AZ-9035	101.6	38.1	10.452
ZY-S01-296	120	5	1.638
ZY-S19-115	125	4	1.365
AZ-9015	127	19.05	6.531
AZ-9027	127	25.4	8.71
ZYMQBLMT67A	140	6	2.268
FB140X25	140	25	9.45
FB15016	150	1.6	0.648
FB150X1.7	150	1.7	0.696
FB15018	150	1.8	0.729
FB150X3.0	150	3	1.215
ZY-S19-116	150	4	1.638
AZ-9008	152.4	9.53	3.92
AZ-9014	152.4	15.88	6.534
AZ-9023	152.4	19.05	7.838
AZ-9028	152.4	25.4	10.452
FB160X6	160	6	2.592
FB160X10	160	10	4.32
FB18040	180	4	1.944
AZ895	203.2	6.35	3.483
AZ892	203.2	9.53	5.227
FB21020	210	20	11.34
FB225.81X3.18	225.81	3.18	1.939
ZY-S15-034	250	15	10.235

Aluminum Flat Bar Application

Aluminum flat bar is one of the most widely used extrusion materials and can be used in various projects in various industries. Aluminum flat bar is an excellent choice for various construction, because its flat and rectangular faces can be customized to the exact size and length that suits your needs.

One of the most common applications of aluminum flat bar is for frame structures. For this application, simply cut the steel bar to the appropriate length, then weld or drill to fit the frame. Especially for construction purposes, a frame made of aluminum flat bar is the right choice because it can bear a lot of weight.

Another popular application of aluminum flat bar is construction support. Whether it is used for ladder hangers, brackets, piping systems, overhead doors or door bolts, aluminum flat bar is the first choice for this environment, providing unparalleled strength, durability and corrosion resistance.

Finally, aluminum flat bar is often used by industrial artists who specialize in large-scale works of art (such as statues). Extruded aluminum bars are best suitable for this application because they are easy to form, but become very durable after the forging process.

Aluminium Construction Profiles

Industrial Aluminum Profile

Standard Aluminium Extrusion Shapes

Professional Aluminium Extrusion Supplier

 info@otalum.com

 0086-755-29991176

 Room 3/22, COFCO Group Center, Baoan District, Shenzhen, Guangdong Province, China

Get A Free Quote

START NOW

When ordering, pls specify alloy, temper, length, quantity, surface finish, end-use and any special instructions regarding tolerance, delivery, packing and certification. It couldn’t be better if you can share with us your designed drawings. If you have any questions, pls contact us without hesitation. Thanks.
