Aluminium Unequal Channel

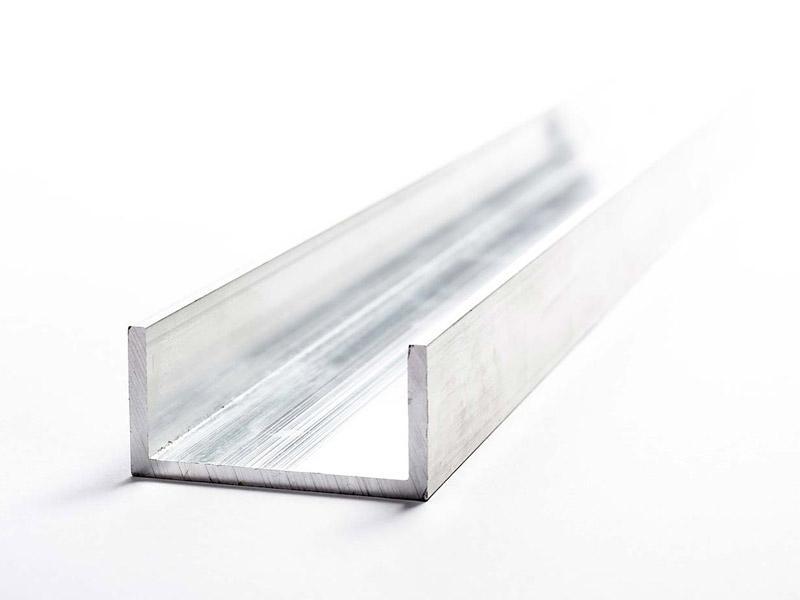

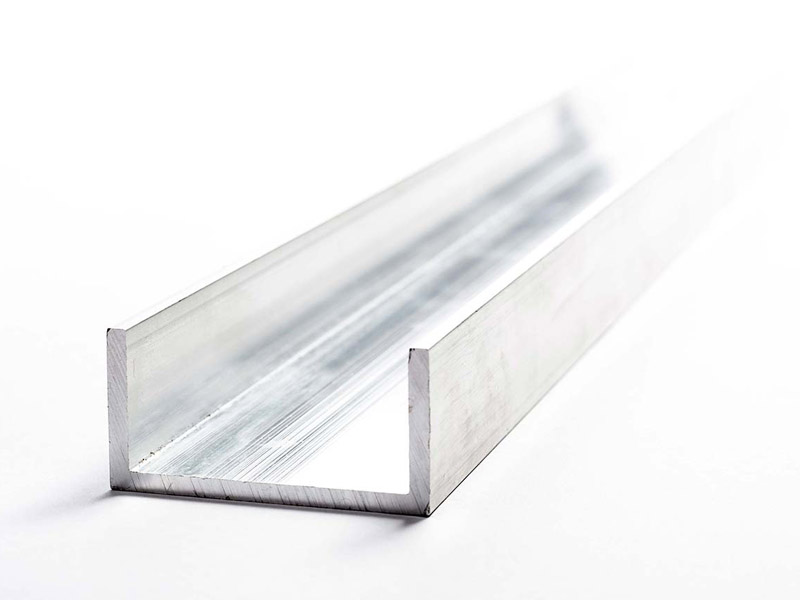

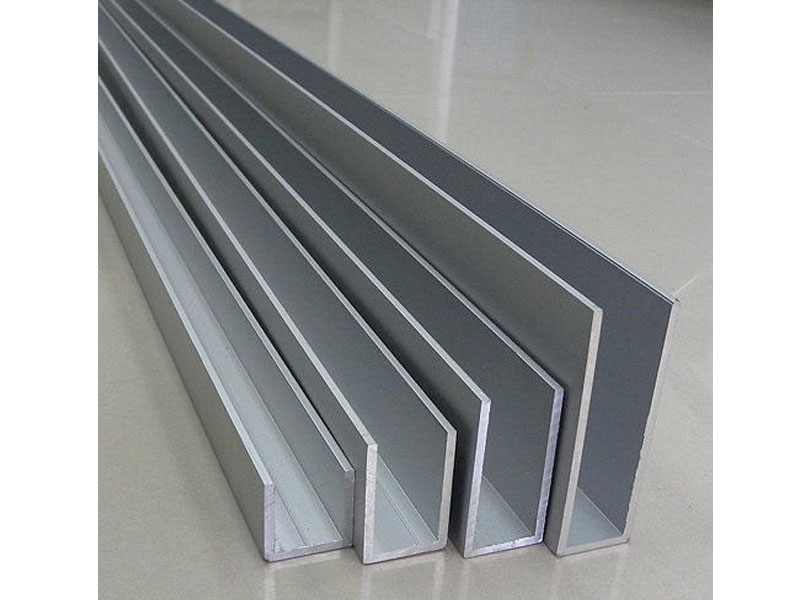

Aluminium unequal channels are "U-shape" extruded profiles with equal lengths of legs but unequal lengths of the bottom.


In Otalum, we offer a wide range of aluminium unequal channels with a variety of alloys, sizes and finishes. Moreover, similar to all the other aluminium extrusion sections produced by Otalum, our aluminium unequal channels can also be cut to different sizes if the existing products cannot meet your requirements.


Precise cutting to length and processing services are available with the fastest lead time.


Features of Aluminium Unequal Channel

AlloyStandardSurface TreatmentFurther ProcessCertificate
6005 T5/T6, 6060 T5/T6, 6061 T4/T6, 6063 T5/T6, 6463 T5/T6, 6082 T5/T6, etc.GB 5237-2008, JISH, AAMA, GB, BS, EnMill finish, Powder Coating, Anodizing, Wooden grain, Electrophoresis, PVDF Painting, Sanding blasting, Polishing, etc.Drilling, Bending, Welding, Precise cutting, Punching, Fabrication of finished products, etc. CE, DNV, TUV, ISO9001


Specifications of Aluminium Unequal Channel

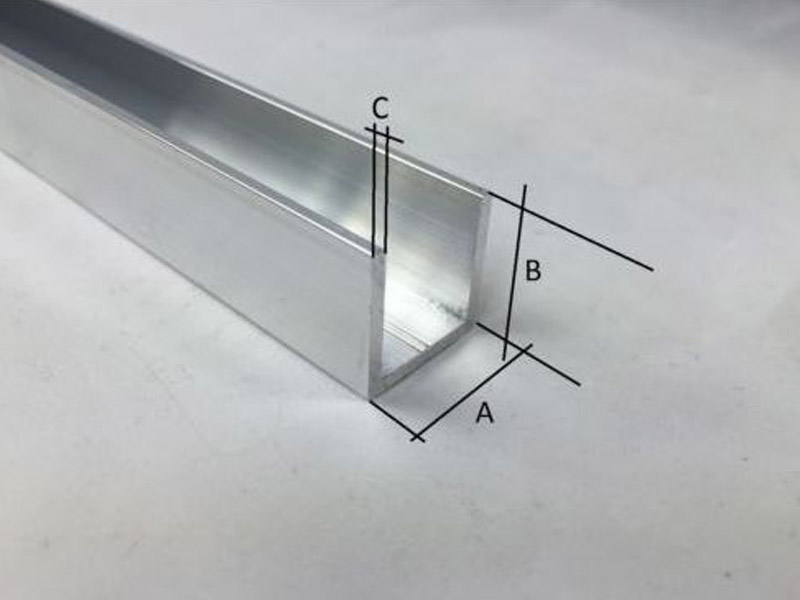

Aluminium Unequal Channel

B=length, mm

H=height, mm

T=thickness, mm

Weight(kg/m)



Item

B

H

T

Weight(kg/m)

CH7X12X1.0

7

12

1

0.076

BK84

7.97

11.7

1

0.076

ZY67448

8

10

1.4

0.095

CH7X10X0.8

10

7

0.8

0.049

ARC069

10

20

1

0.13

ZY66165

11.8

14

0.9

0.092

7014H

12

14

0.95

0.105

AZ821

12.7

19.05

3.18

0.381

CH14X35X1.5

14

35

1.5

0.329

ZY-236-CHB0161

15

5

1.3

0.078

CH15X8X1.5

15

8

2

0.13

CH15X10X1.0

15

10

1

0.089

ZYW0046

15.5

6

1

0.06

CH16X6.5X1.6

16

6.5

1.6

0.112

2637

16

28

1.5

0.281

ZY2666

17

18.5

1.5

0.208

ZYP50307-20

17

30

2

0.399

6044

17.6

50

4

1.183

AI-CH1920T12

19

20

1.2

0.184

AZ823

19.05

9.53

3.18

0.273

ZY-246-001

19.5

17

2

0.267

ZY-HK032

20

10

1

0.104

CH20X12X8

20

12

0.8

0.093

ZY-236-012

20

12

1.45

0.162

CH201616

20

16

1.6

0.211

ZYH0070

20

16

3

0.373

ZY-S11-054

20

17

2

0.273

CF90100

20

18

2.5

0.346

ZY14033

20

25

2.5

0.432

ZYW0117

20

33

2.5

0.545

CH20X40X2.0

20

40

2

0.518

ZY-025-085

21

55

1.8

0.625

U21.06X13.5X1.4

21.06

13.5

1.4

0.17

AI-CH2220T12

22

20

1.2

0.194

6043

22.8

50

4

1.239

CRL058

24.73

38.1

2.84

0.729

DT3220

24.8

39

3

0.792

CH3214

25

5

0.9

0.082

CH7X25X0.8

25

7

0.8

0.082

CH2512T09

25

12

0.9

0.113

AI-N733

25

20

1.5

0.254


25

40

3

0.802

TC476

25.4

12.7

3

0.362

AABE-025

26

65

2.8

1.137

CH27X15X0.8

27

15

0.8

0.119

6042

27.9

50

4

1.293

SS2-8271

28

23

3

0.551

CH28.5X35X2.5

28.5

35

2.5

0.702

ZY-246-003

29

22

2

0.373

CF-US-03

29.3

20.7

1.6

0.292

AV1460R

30.25

32.25

4.25

1.002

CH31X16X1.8

31

16

1.8

0.292

AZ824

31.75

12.7

3.18

0.437

TC083

31.75

19.05

3.18

0.545

CE006

31.75

50.8

3.18

1.103

CH3225

32

25

3

0.616

ZY-S11-052

32

30

3.03

0.713

CH32X40X3

32

40

3

0.868

FLEX24

33.9

26

1.8

0.4

CH34X25X2

34

25

2

0.432

ZY-S11-071

35

20

4

0.732

AM2250

35

25

1.5

0.332

ZYW0224

35.5

21.3

1.3

0.264

ZYBY077

37

16

1.5

0.267

CH378525

37.85

25

1.4

0.308

ZY83-15

38

13

1.25

0.208

AQ1134

38

25

1.8

0.415

TC299

38.1

12.7

3.18

0.492

70057KMB

38.1

19.05

3.18

0.606

AF016

38.1

25.4

2.54

0.575

TC085

38.1

25.4

3.18

0.707

CH40X10X1.6

40

10

1.6

0.246

CF-C025

40

20

1.6

0.332

CH402030

40

20

3

0.599

AV1560S

40

25

3

0.68

ZY-S01-934

40

50

5

1.775

AQ1133

42

25

1.8

0.434

ZY66811

42

25

2

0.475

AZ826

44.45

19.05

3.18

0.653

AZ827

44.45

25.4

3.18

0.764

ZYH0193

45

8

0.8

0.132

ZY-582-010

45

35

1.4

0.429

CH45.6X20X3.0

45.6

20

3

0.652

ZYW0110

46

12

1.2

0.218

CH46.8X20X3.0

46.8

20

3

0.661

ZY-236-013

50

13

1.45

0.286

CH5025

50

25

3

0.761

ZY66739

50

27

2.4

0.65

AI-CH25508

50.2

25

1.3

0.378

TC300

50.8

12.7

3.18

0.6

TC228

50.8

19.05

3

0.672

OS-CH004

50.8

25.4

2.29

0.599

OS-CH002

50.8

25.4

3.18

0.818

OS-CH001

50.8

38.1

3.18

1.037

CH088

53.2

25

1.2

0.326

70016KMB

53.34

38.1

1.14

0.402

CF-AUSTPA-1

54

20

1.5

0.369

CH54X30X15

54

30

1.5

0.451

CH55X25X2.0

55

25

2

0.551

ZYPM90A24

59.7

35

2.85

0.964

AM9164

60

32

3

0.956

ZYW0244

60

55

1.5

0.675

ZY66749

61

32.5

1

0.339

CH64X58X6

64

58

6

2.722

CH65X20X1.4

65

20

1.4

0.39

ZYW0082

67

40

3

1.142

CH68.5X25X3

68.5

25

3

0.923

ZY-S03-103

76

13

1

0.273

AZ829

76.2

12.7

3.18

0.818

CH76.2X20X1.6

76.2

20

1.6

0.494

OS-CH006

76.2

25.4

3.18

1.037

AABE-019

76.2

50.8

6.35

2.83

70045KMB

79.38

38.1

1.4

0.581

AM9165

80

25

3

1.004

ZYPED-07

80

45

4

1.75

CH78X30X15

81

30

1.5

0.573

CH8212T11

82

12

1.1

0.308

TC502

82.55

50.8

3

1.442

ZY83-14

83

20

1.25

0.408

9012

87

12

1

0.3

MF2090A11-1.0

87

14

1

0.305

CRL178

88.52

95.25

9.53

6.685

AV1296R

99.85

40

3

1.425

CH100X12X1.5

100

12

1.5

0.489

CH10025T30

100

25

3

1.116

CH1005030

100

50

3

1.577

ZY-001-062

100

50

6

3.046

TC427

101.6

25.4

3.18

1.253

ZYBY089

110

47

3

1.622

ZY-248-001

180

60

3.5

2.77

ZY-275-001

250

160

18

25.944


START NOW
When ordering, pls specify alloy, temper, length, quantity, surface finish, end-use and any special instructions regarding tolerance, delivery, packing and certification. It couldn’t be better if you can share with us your designed drawings. If you have any questions, pls contact us without hesitation. Thanks.
